State Class Reference

Creates a State object to be inherited. More...

#include <State.h>

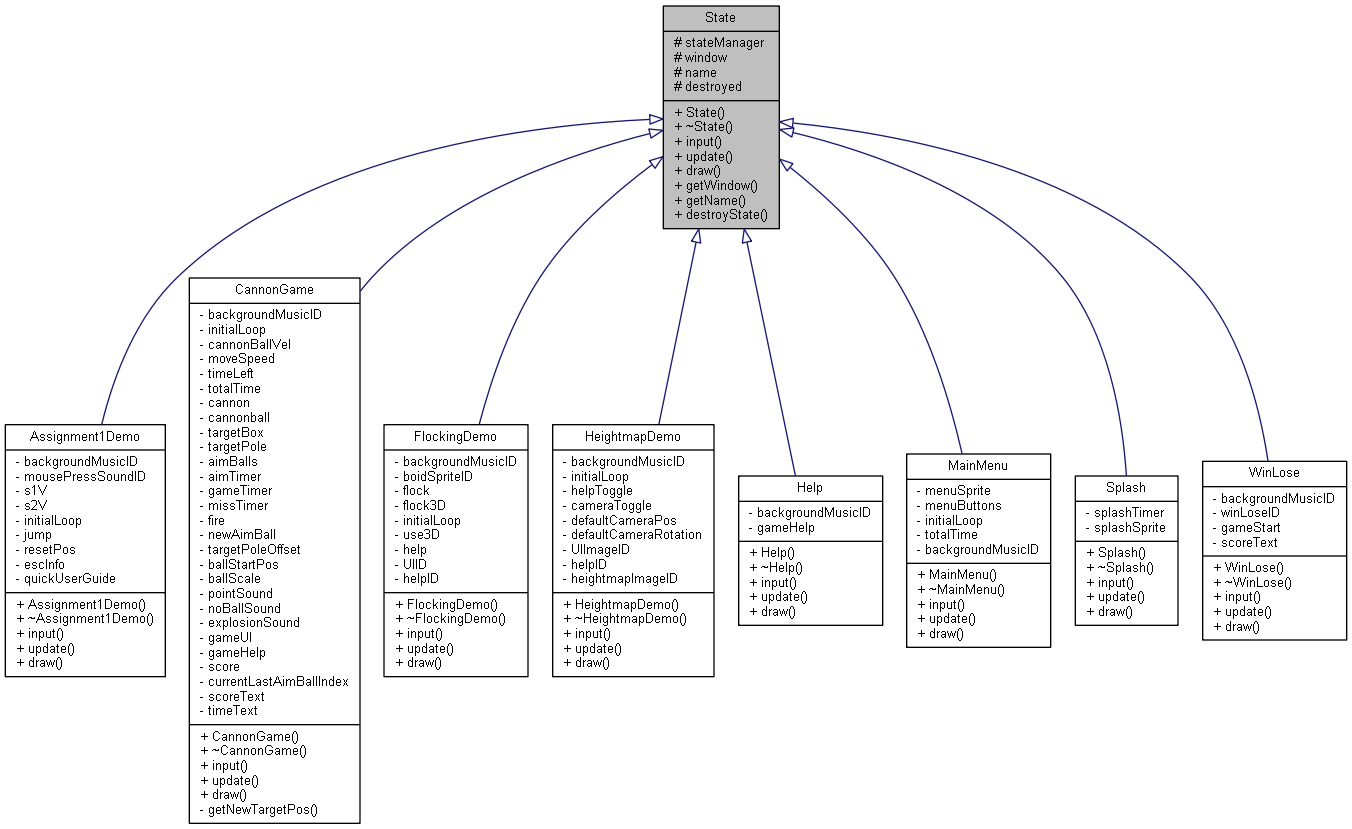

Inheritance diagram for State:

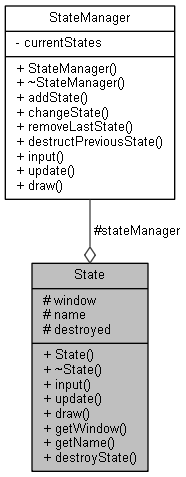

Collaboration diagram for State:

Public Member Functions
	State (StateManager *stateManager, SDL_Window *window, std::string name)
	Constructs a State object. More...
virtual	~State ()
	A virtual destructor for the State object. More...
virtual bool	input ()=0
	A pure virtual function to handle the user input for use with the State. More...
virtual void	update ()=0
	A pure virtual function to update the State to allow the State to run. More...
virtual void	draw ()=0
	A pure virtual function to draw to the screen using the window. More...
SDL_Window *	getWindow ()
	Gets the window. More...
std::string	getName ()
	Gets the name of the state. More...
void	destroyState ()
	A function to destroy all data in a state. More...

Protected Attributes
StateManager *	stateManager
	A pointer to the state manager. More...
SDL_Window *	window
	The window to display to. More...
std::string	name
	The state name. More...
bool	destroyed
	A boolean for if the state is destroyed. More...

Detailed Description

Creates a State object to be inherited.

Constructor & Destructor Documentation

State()

State::State	(	StateManager *	stateManager,
		SDL_Window *	window,
		std::string	name
	)

Constructs a State object.

Parameters

stateManager	A pointer to the StateManager.
window	A pointer to the window in use.
name	The name of the state.

~State()

State::~State ( )

virtual

A virtual destructor for the State object.

Member Function Documentation

destroyState()

void State::destroyState

(

)

A function to destroy all data in a state.

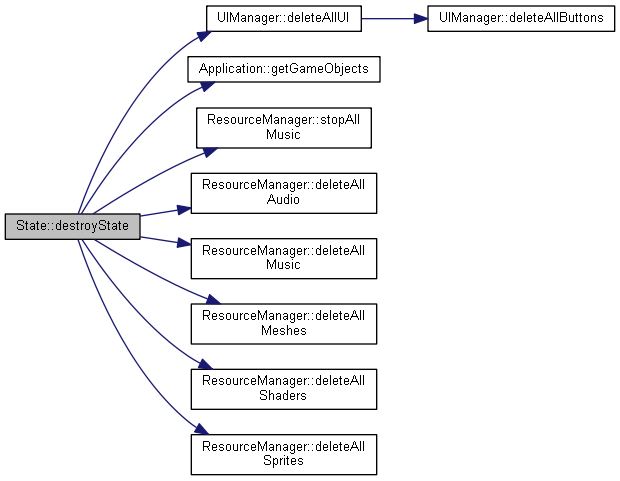

Here is the call graph for this function:

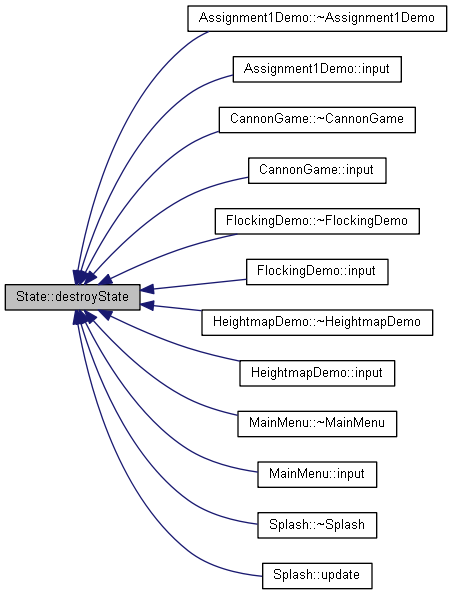

Here is the caller graph for this function:

draw()

virtual void State::draw ( )

pure virtual

A pure virtual function to draw to the screen using the window.

Implemented in CannonGame, Assignment1Demo, Splash, WinLose, Help, FlockingDemo, HeightmapDemo, and MainMenu.

getName()

std::string State::getName

(

)

Gets the name of the state.

Returns

The name of the state

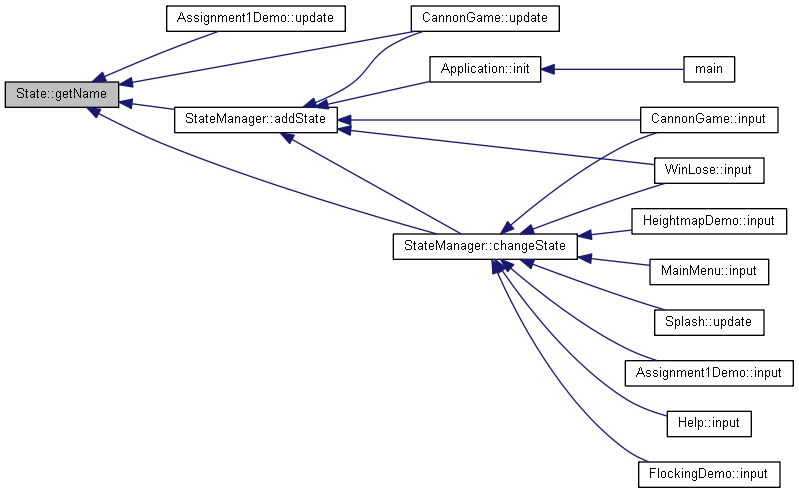

Here is the caller graph for this function:

getWindow()

SDL_Window * State::getWindow

(

)

Gets the window.

Returns

A pointer to the window

input()

virtual bool State::input ( )

pure virtual

A pure virtual function to handle the user input for use with the State.

Returns

If false then quit State.

Implemented in CannonGame, Assignment1Demo, Splash, WinLose, Help, FlockingDemo, HeightmapDemo, and MainMenu.

update()

virtual void State::update ( )

pure virtual

A pure virtual function to update the State to allow the State to run.

Implemented in CannonGame, Assignment1Demo, Splash, WinLose, Help, FlockingDemo, HeightmapDemo, and MainMenu.

Member Data Documentation

destroyed

bool State::destroyed

protected

A boolean for if the state is destroyed.

name

std::string State::name

protected

The state name.

stateManager

StateManager* State::stateManager

protected

A pointer to the state manager.

window

SDL_Window* State::window

protected

The window to display to.

---

The documentation for this class was generated from the following files:

• LevelHEngine/States/State.h
• LevelHEngine/States/State.cpp
